Walbro (TI Automotive) 525 LPH Hellcat Fuel Pump & Install Kit F90000285 & 400-1168

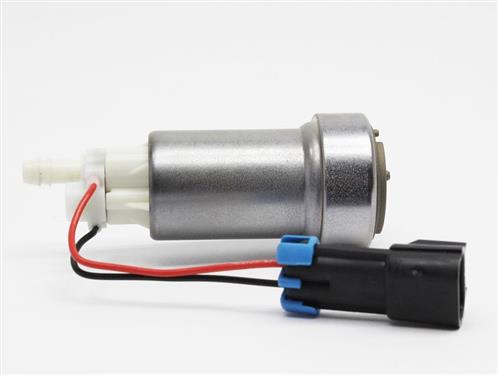

TI Automotive F90000285 39/50 Fuel Pump with 400-1168 Install Kit Enjoy the highest output on today’s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700 horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance. Pump Specifications: • Pump Length: 131mm • Main Housing Diameter: 39mm • Lower Housing Diameter: 50mm • Fuel Inlet Diameter: 11mm OD • Fuel Outlet Diameter: 11mm OD • Flow Rate: 470lph @ 40psi (120 gph) • Test Voltage: 13.5 Volts MORE FLOW = MORE POWER… F90000285 Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 700HP. • Highest flow in-tank brushed fuel pump offering from TI Automotive • Featuring award winning DCSS technology • E85 compatible • Internal check valve — prevent fuel system pressure bleed down — avoid extended cranks • High pressure relief setting — support supercharger and turbo applications • Capable of supporting 900 HP at 60PSI naturally aspirated applications • Flush mountable to existing hanger with installation kit 400-1174 p/n F90000285
